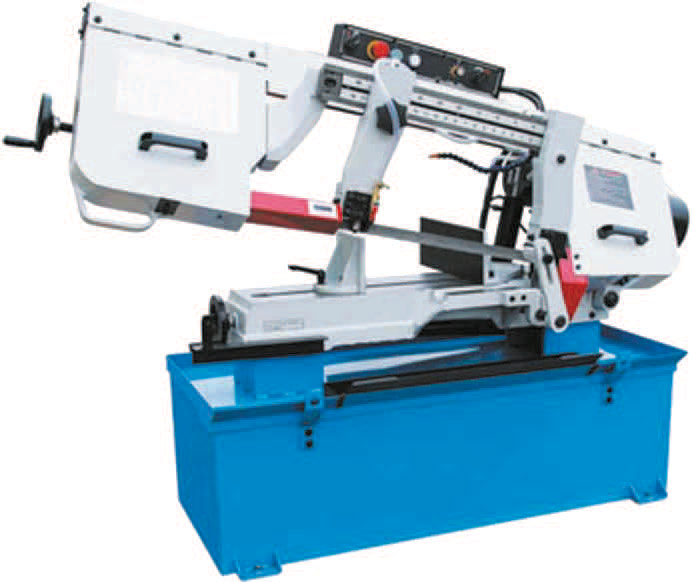

| Specifications | BSS-150 | BSS-200 | BSS-250 | BSS-300 | BSS-350 | BSS-400 | BSS-450 | BSS-500 |
|---|---|---|---|---|---|---|---|---|
| Capacity Round (mm) | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 |
| Capacity Square (mm) | 150 | 175 | 225 | 275 | 325 | 375 | 425 | 475 |
| Drive Motor | 0.5 HP | 1 HP | 1.5 HP | 2 HP | 2 HP | 2 HP | 2 HP | 3 HP |
| Coolant Pump | 0.15 HP | 0.15 HP | 0.15 HP | 0.15 HP | 0.15 HP | 0.15 HP | 0.15 HP | 0.15 HP |
| Blade Dimension (mm) | 2540 x 20 x 0.9 | 3000 x 27 x 0.9 | 2000 x 750 x 950 | 3760 x 34 x 1.1 | 4100 x 34 x 1.1 | 4420 x 34 x 1.1 | 4570 x 34 x 1.1 | 4600 x 34 x 1.1 |
| Blade Speed (m x min) | 25-30-40 | 20-35-55-75 | 20-35-55-75 | 20-35-55-75 | 20-35-55-75 | 20-35-55-75 | 20-35-55-75 | 20-35-55-75 |
| Approx Dim (LxWxH) (mm) | 1500 x 570 x 870 | 1630 x 750 x 870 | 2000 x 750 x 950 | 2400 x 930 x 1050 | 2550 x 930 x 1050 | 2650 x 930 x 1215 | 2750 x 930 x 870 | 3000 x 930 x 1400 |
| Net Weight Approx. | 250 Kgs | 320 Kgs | 390 Kgs | 770 Kgs | 820 Kgs | 900 Kgs | 990 Kgs | 1100 Kgs |
| Standard Features | Heavy duty oil field gear box | Hydraulic feed control jumper system | Chip Collection tray | Chip removing wire brush | Carbide wear pad blade guiding system |
|---|---|---|---|---|---|
| Optional Accessories | Swivel vice for angular cutting | Job roller stand | Bi-Metal Blades | VFD AC drive | Semi auto or Fully auto type |

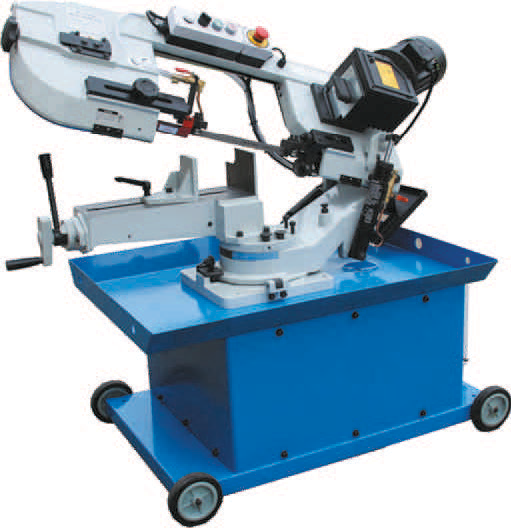

Note: Degree Cutting Bandsaw available, For more info contact on info@ietmachines.com

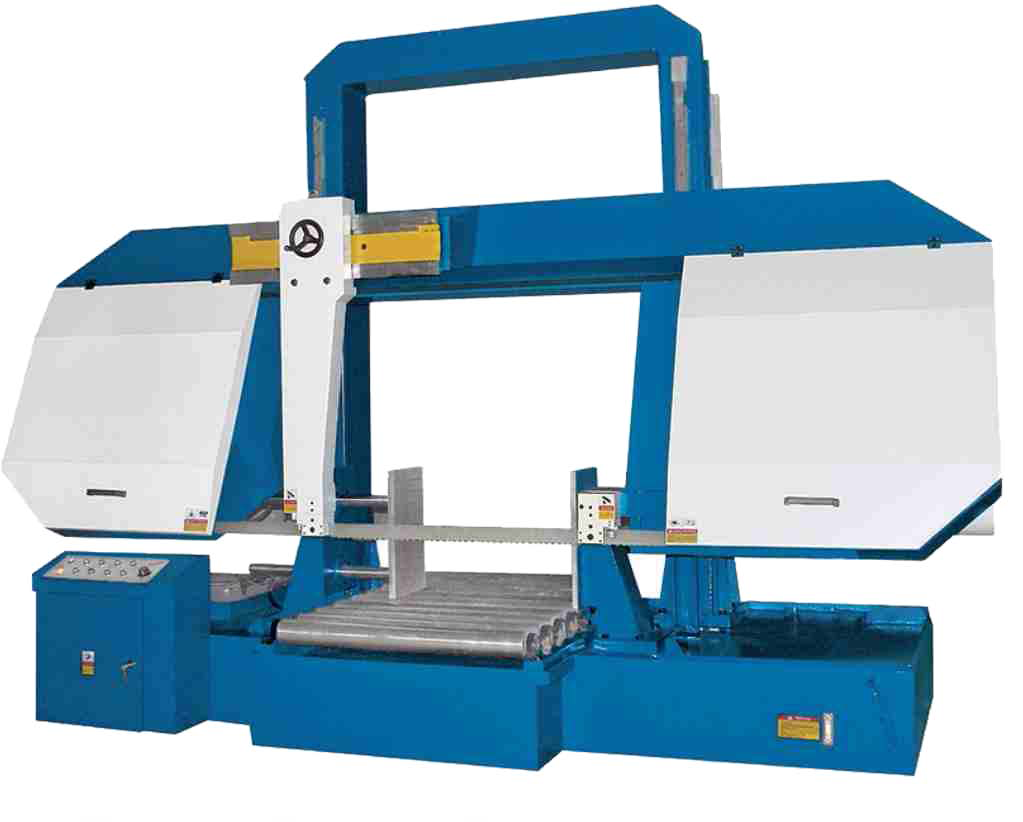

| Specifications | BSD-250 | BSD-300 | BSD-350 | BSD-425 | BSD-530 | BSD-650 | BSD-800 | BSD-1000 | BSD-1250 | BSD-1500 |
|---|---|---|---|---|---|---|---|---|---|---|
| Capacity Round (mm) | 250 | 300 | 350 | 425 | 530 | 650 | 800 | 1000 | 1250 | 1500 |
| Capacity Square (mm) | 250 | 300 | 350 | 425 | 530 | 650 | 800 | 1000 | 1250 | 1500 |
| Drive Motor | 2 HP | 3 HP | 5 HP | 7.5 HP | 10 HP | 12.5 HP | 15 HP | 15 HP | 20 HP | 20 HP |
| Hydraulic Motor | 1 HP | 1 HP | 1 HP | 1 HP | 1 HP | 2 HP | 2 HP | 3 HP | 3 HP | 3 HP |
| Coolant Pump | 0.15 HP | 0.15 HP | 0.15 HP | 0.15 HP | 0.15 HP | 0.15 HP | 0.15 HP | 0.15 HP | 0.15 HP | 0.15 HP |
| Blade Dimension (mm) | 3720 x 27 x 0.9 | 4100 x 34 x 1.1 | 4420 x 34 x 1.1 | 4860 x 41 x 1.3 | 5800 x 54 x 1.3 | 6900 x 54 x 1.6 | 8000 x 67 x 1.6 | 8800 x 67 x 1.6 | 12300 x 80 x 1.6 | 13100 x 80 x 1.6 |
| Blade Speed (m x min) | 20-40-60 | 20-40-60 | 20-40-60 | 20-40-60 | 20-40-60 | 20-40-60 | 20-40-60 | 20-40-60 | 20-40-60 | 20-40-60 |
| Standard Features | Heavy duty gear box | Chip Collection tray | Chip removing wire brush | Carbide wear pad blade guiding system |
|---|---|---|---|---|
| Optional Accessories | Job roller stand | Bi-Metal Blades | VFD AC drive | Semi auto or Fully auto type |

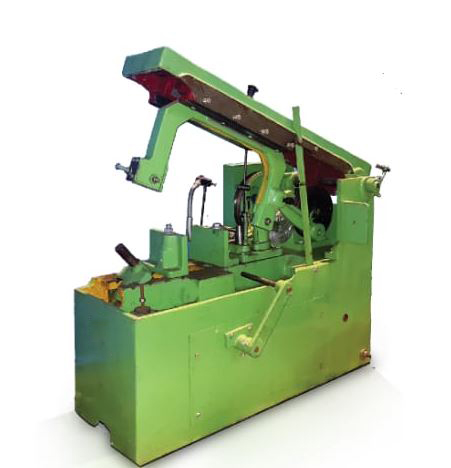

| Specifications | HHS-200 | HHS-250 | HHS-300 | HHS-400 | HHS-500 | HHS-600 |
|---|---|---|---|---|---|---|
| Capacity Round (mm) | 200 | 250 | 300 | 400 | 500 | 600 |
| Capacity Square (mm) | 150 | 200 | 250 | 325 | 350 | 425 |
| Stoke Length (mm) | 135 | 140 | 140 | 145 | 150 | 150 |
| Storke per min (Approx) | 100-120 | 85-100 | 85-100 | 70-85 | 70-85 | 70-85 |
| Blade Dimension (mm) | 14" - 16" | 16" - 18" | 18" - 20" | 18" - 24" | 24" - 32" | 30" - 36" |
| Drive Motor (1440 PRM) | 1 HP | 2 HP | 2 HP | 3 HP | 5 HP | 5 HP |
| Machine Size (LxWxH) (mm) | 100 x 600 x 800 | 1150 x 625 x 1000 | 1250 x 650 x 1000 | 1500 x 675 x 1200 | 1650 x 700 x 1300 | 1750 x 725 x 1400 |
| Net Weight Approx. | 335 Kgs | 450 Kgs | 550 Kgs | 750 Kgs | 1100 Kgs | 1200 Kgs |
| Standard Features | Rigid Casting Bed | Chip Collection tray | Manual Clamping Vice | Hydraulically operated Feed on two levers |
|---|

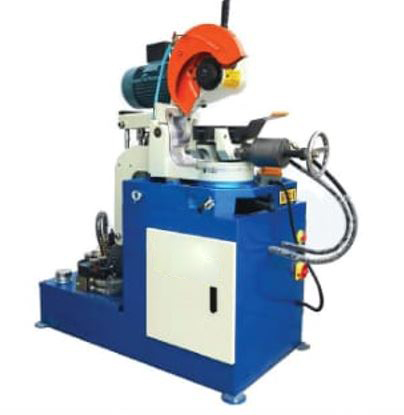

Circular Saw
