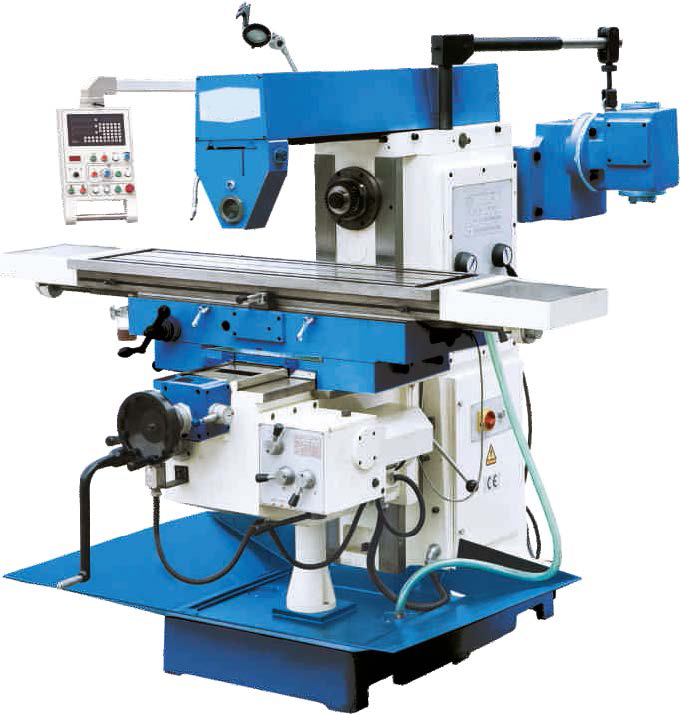

| Specification | HM-1 | HM-2 | HM-3 | HM-4 | HM-5 |
|---|---|---|---|---|---|
| Table Size (mm) | 1300 x 300 | 1400 x 330 | 1600 x 350 | 1800 x 400 | 2000 x 450 |
| X-Axis Travel (mm) | 700 | 800 | 1000 | 1200 | 1300 |
| Y-Axis Travel (mm) | 215 | 260 | 340 | 380 | 450 |
| Z-Axis Travel (mm) | 450 | 510 | 600 | 650 | 700 |
| Swivel | 45 Deg | 45 Deg | 45 Deg | 45 Deg | 45 Deg |
| T- Slot (mm) | 3 x 16 | 3 x 22 | 3 x 22 | 3 x 22 | 3 x 22 |
| No. Feeds | 18 | 18 | 18 | 18 | 18 |
| Longitudinal Feed/Min | 23-420 | 23-420 | 23-420 | 23-420 | 23-420 |
| Cross Feed/Min | 23-420 | 23-420 | 23-420 | 23-420 | 23-420 |
| Vertical Travel Feed/Min | 3-70 | 3-70 | 3-70 | 3-70 | 3-70 |
| No. of Spindle Speeds | 12 | 12 | 12 | 12 | 12 |
| Spindle Speed (RPM) | 40-1200 | 40-1200 | 40-1200 | 40-1200 | 40-1200 |
| Spindle Taper | ISO 40 | ISO 40 | ISO 40 | ISO 50 | ISO 50 |
| Arbour Dia (mm) | 25.4 | 25.4 | 25.4 | 25.4 | 25.4 |
| Main Motor | 3 HP | 5 HP | 7.5 HP | 10 HP | 10 HP |
| Feed Motor | 2 HP | 2 HP | 3 HP | 3 HP | 5 HP |
| Standarad Accessories | Optional Accessories | Optional Accessories | Optional Accessories | |||
|---|---|---|---|---|---|---|
| Electrical Control Panel | Rotary Table | Machine Vice | Clamping Kit | |||
| Arbour with Hardened bush | Vertical Attachement | Universal Diving Head | Slotting Head |

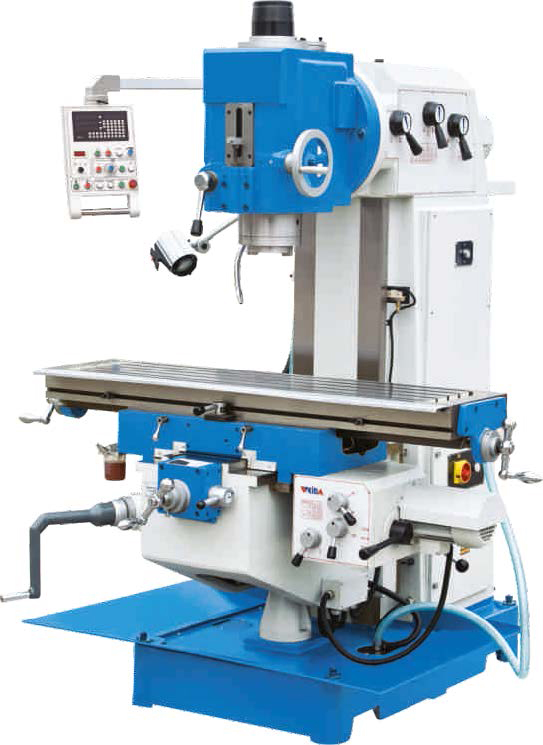

| Specification | VM-1 | VM-2 | VM-3 | VM-4 | VM-5 | VM-6 |
|---|---|---|---|---|---|---|
| Face of the Body | 6.5" | 8.5" | 10" | 11" | 12" | 13" |
| Table Size (mm) | 750 x 175 | 1000 x 225 | 1200 x 250 | 1275 x 275 | 1450 x 300 | 1600 x 325 |
| X-Axis Travel (mm) | 350 | 475 | 550 | 625 | 700 | 750 |
| Y-Axis Travel (mm) | 150 | 175 | 200 | 250 | 300 | 325 |
| Z-Axis Travel (mm) | 300 | 325 | 400 | 550 | 600 | 650 |
| Swivel either side | 45 Deg | 45 Deg | 45 Deg | 45 Deg | 45 Deg | 45 Deg |
| T- Slot (mm) | 3 x 10 | 3 x 12.5 | 3 x 12.5 | 3 x 12.5 | 3 x 16 | 3 x 16 |
| Arbour Dia (mm) | 25.4 | 25.4 | 25.4 | 25.4 | 25.4 | 25.4 |
| Spindle Taper | ISO 30 | ISO 40 | ISO 40 | ISO 40 | ISO 40 | ISO 40 |
| No. of Spindle Speeds | 03-06 | 06-09 | 06-09 | 06-09 | 06-09 | 06-09 |
| Spindle Speed (RPM) | 45-550 | 45-550 | 50-750 | 80-680 | 42-700 | 42-700 |
| Main Motor | 1 HP | 2 HP | 2 HP | 2 HP | 3 HP | 5 HP |
| Floor Space (Base) (mm) | 650 x 425 | 875 x 500 | 1000 x 600 | 1150 x 650 | 1200 x 700 | 1400 x 750 |
| Height (mm) | 1375 | 1550 | 1675 | 1750 | 1825 | 1875 |
| Weight | 500 Kgs | 1100 Kgs | 1450 Kgs | 2200 Kgs | 2750 Kgs | 3650 Kgs |
| Standarad Accessories | Optional Accessories | Optional Accessories | Optional Accessories | |||
|---|---|---|---|---|---|---|
| Electrical Control Panel | Rotary Table | Machine Vice | Clamping Kit | |||
| Arbour with Hardened bush | Vertical Attachement | Universal Diving Head | Slotting Head |

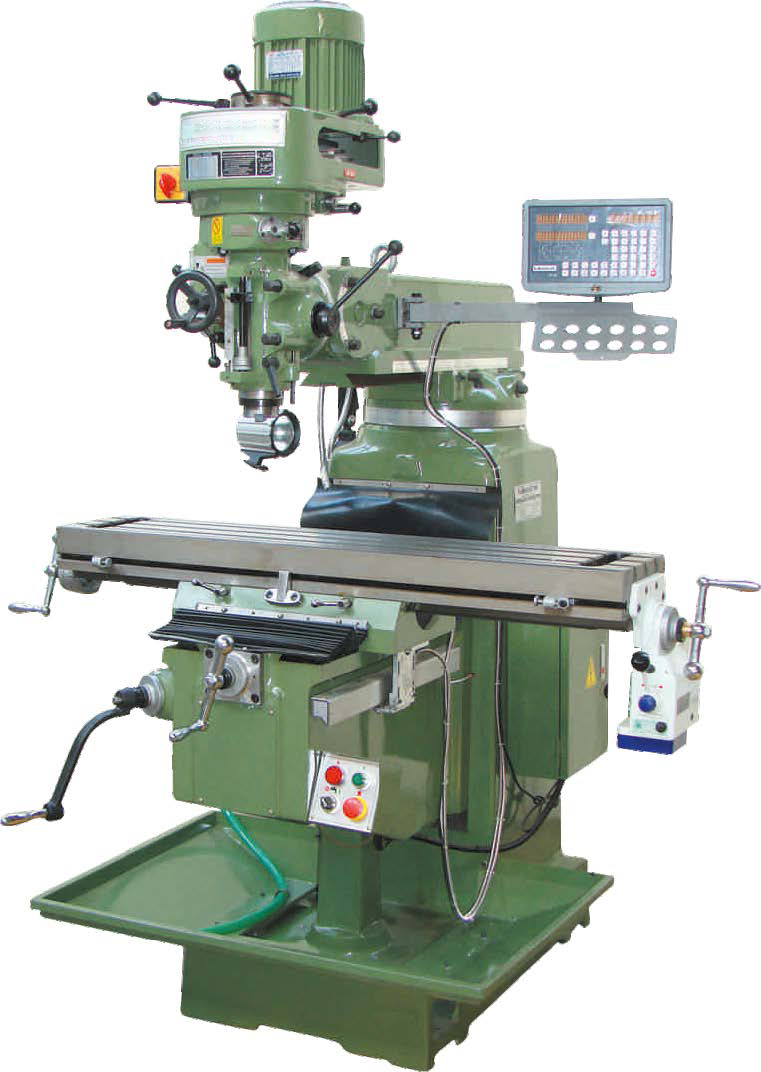

| Specification | RTM-3 | RTM-4 | RTM-5 |
|---|---|---|---|
| Table Size (mm) | 1270 x 254 | 1370 x 254 | 1370 x 254 |
| X-Axis Travel (mm) | 760 | 860 | 900 |
| Y-Axis Travel (mm) | 400 | 400 | 445 |
| Z-Axis Travel (mm) | 405 | 405 | 485 |
| T- Slot (mm) | 3 x16 | 3 x16 | 3 x16 |
| Ram Travel (mm) | 510 | 580 | 580 |
| Spindle Taper | R8 (NT-30) | R8 (NT-30) | NT-40 |
| Quill Travel (mm) | 127 | 127 | 127 |
| Spindle Nose to Table (mm) | 440 | 440 | 440 |
| Tilt Head | 90 Deg Forward, Backward & Right Side | 90 Deg Forward, Backward & Right Side | 90 Deg Forward, Backward & Right Side |
| Spindle Speed (RPM) | 70-4620 | 70-4620 | 70-4620 |
| Speed Steps | 16 | 16 | 16 |
| Quill Feed (mm/min) | 0.04,0.08,0.15 | 0.04,0.08,0.15 | 0.04,0.08,0.15 |
| Power | 3 HP | 3 HP | 3 HP |
| Standarad Accessories | Optional Accessories | Optional Accessories | ||
|---|---|---|---|---|
| Machine Vice | Boring Head | Universal Diving Head | ||
| Milling Chuck | BS Universal Head | Slotting Head | ||
| Spanner Set | Clamping Kit | Rotary Table | ||
| horizontal Milling kit | DRO |
| Specification | VM-1 | VM-2 | VM-3 | VM-4 | VM-5 | VM-6 |
|---|---|---|---|---|---|---|
| Face of the Body | 6.5" | 8.5" | 10" | 11" | 12" | 13" |
| Table Size (mm) | 750 x 175 | 1000 x 225 | 1200 x 250 | 1275 x 275 | 1450 x 300 | 1600 x 325 |
| X-Axis Travel (mm) | 350 | 475 | 550 | 625 | 700 | 750 |
| Y-Axis Travel (mm) | 150 | 175 | 200 | 250 | 300 | 325 |
| Z-Axis Travel (mm) | 300 | 325 | 400 | 550 | 600 | 650 |
| Swivel either side | 45 Deg | 45 Deg | 45 Deg | 45 Deg | 45 Deg | 45 Deg |
| T- Slot (mm) | 3 x 10 | 3 x 12.5 | 3 x 12.5 | 3 x 12.5 | 3 x 16 | 3 x 16 |
| Arbour Dia (mm) | 25.4 | 25.4 | 25.4 | 25.4 | 25.4 | 25.4 |
| Spindle Taper | ISO 30 | ISO 40 | ISO 40 | ISO 40 | ISO 40 | ISO 40 |
| No. of Spindle Speeds | 03-06 | 06-09 | 06-09 | 06-09 | 06-09 | 06-09 |
| Spindle Speed (RPM) | 45-550 | 45-550 | 50-750 | 80-680 | 42-700 | 42-700 |
| Main Motor | 1 HP | 2 HP | 2 HP | 2 HP | 3 HP | 5 HP |
| Floor Space (Base) (mm) | 650 x 425 | 875 x 500 | 1000 x 600 | 1150 x 650 | 1200 x 700 | 1400 x 750 |
| Height (mm) | 1375 | 1550 | 1675 | 1750 | 1825 | 1875 |
| Weight | 500 Kgs | 1100 Kgs | 1450 Kgs | 2200 Kgs | 2750 Kgs | 3650 Kgs |
| Standarad Accessories | Optional Accessories | Optional Accessories | Optional Accessories | |||
|---|---|---|---|---|---|---|
| Electrical Control Panel | Rotary Table | Machine Vice | Clamping Kit | |||
| Arbour with Hardened bush | Vertical Attachement | Universal Diving Head | Slotting Head |

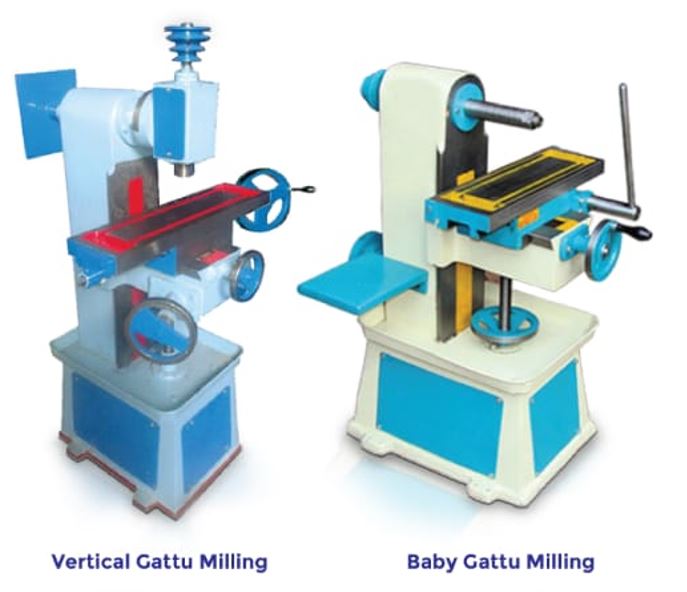

Baby Gattu Milling

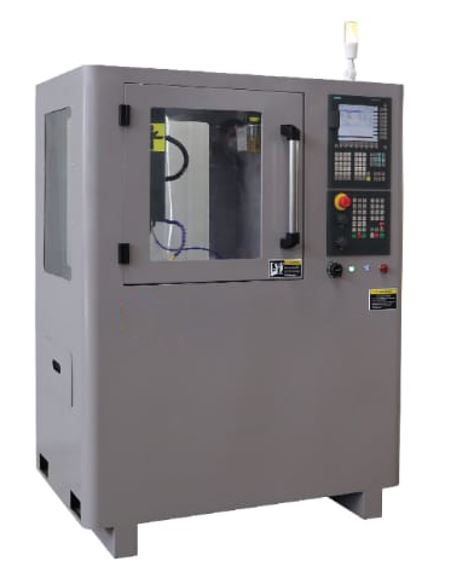

CNC Mini Milling

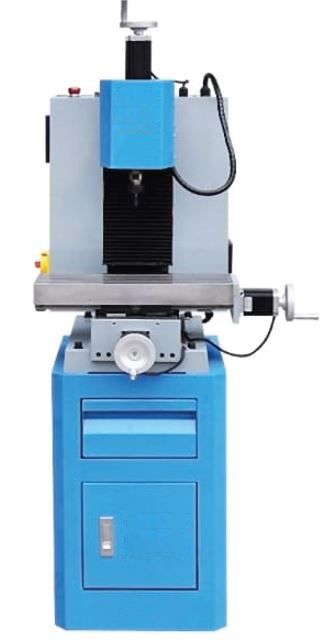

CNC Mini Trainer Milling
