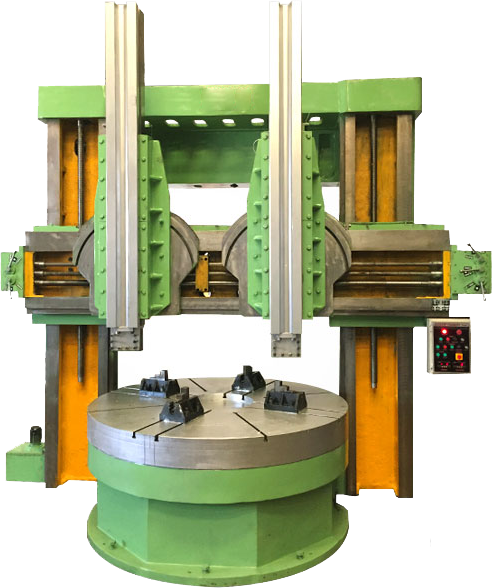

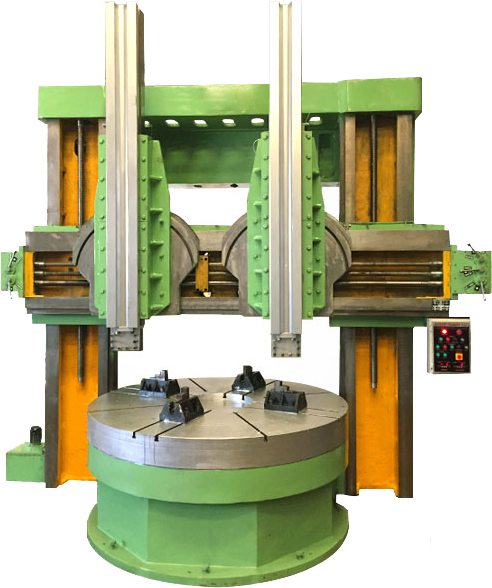

| Specifications | VTL-1 | VTL-1.5 | VTL-2 | VTL-2.5 | VTL-3 | VTL-4 | VTL-5 |
|---|---|---|---|---|---|---|---|
| Max. Turning Dia (mm) | 1100 | 1700 | 2200 | 2700 | 3200 | 4200 | 5200 |
| Table Dia (mm) | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 4500 |
| Max. Working Height* (mm) | 900 | 1000 | 1500 | 1500 | 2000 | 2000 | 2000 |
| Cross Rail Type* (mm) | Fixed | Fixed | Movable | Movable | Movable | Movable | Movable |
| Max. Vertical Treavel of Ram* (mm) | 800 | 800 | 800 | 800 | 800 | 800 | 800 |
| Swivel Angle of Head (Degree) | ±30 Deg | ±30 Deg | ±30 Deg | ±30 Deg | ±30 Deg | ±30 Deg | ±30 Deg |
| No. of Table Speeds | Stepless Infinitely Variable Speed with VFD | ||||||
| Range of Table Speeds* (RPM) | 15-100 | 15-60 | 10-30 | 03-20 | 1.5-15 | 01-10 | 01-08 |
| Feeds Vertical/Horizontal | Stepless Infinitely Variable Speed with VFD servo motors | ||||||
| Feeds Rapid Travel of Head (mm/min) | 1-1000 | 1-1000 | 1-1000 | 1-1000 | 1-1000 | 1-1000 | 1-1000 |
| Main Motor* (HP) | 25 | 25 | 30 | 40 | 40 | 50 | 75 |
| Vertical/Horizontal Feed Motor (HP) | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Cross Rail Motor (HP) | 5 | 5 | 5 | 5 | 5 | ||
| Standard Features | Complete Electricals | Control Panel | Auto Feed of Ram Head | Auto Lubrication System | 4 set of Jaws for Job Clamping | All Major parts finished on CNC. |
|---|---|---|---|---|---|---|
| Optional Accessories | Second Ram head in cross slide | Live Spindle Ram Head for drilling | Turret Head | Simenes PLC control panel |
Note: * Customization as per requirement is possible, for more info contact on info@ietmachines.com
| Specifications | S-150 | S-250 | S-300 | S-450 |
|---|---|---|---|---|
| Stroke (mm) | 150 | 250 | 300 | 450 |
| Rotary Table (mm) | 275 | 375 | 500 | 900 |
| Longitudunal Movement (mm) | 200 | 280 | 300 | 600 |
| Cutting Speed of Ram (RPM) | 30-60-90 | 30-55-90 | 18-46-82 | 36-50-70 |
| Ram Adjustment (mm) | 150 | 200 | 250 | 325 |
| Thorat Depth (mm) | 200 | 350 | 400 | 675 |
| Distance tool rest to main column (mm) | 350 | 400 | 450 | 625 |
| Height between Table & Head (mm) | 300 | 375 | 450 | 700 |
| Motor HP (HP) | 1.5 | 2 | 3 | 7.5 |
| Machine Size (L x W x H) (mm) | 800 x 1100 x 1550 | 950 x 1325 x 1825 | 1125 x 1550 x 1925 | 2000 x 1800 x 1300 |
| Weight (Kg) | 975 | 1450 | 1900 | 4500 |
| Standard Features | Motor Pulleys | Handles | Wheel Covers | |
|---|---|---|---|---|
| Optional Accessories | Control Panel | Chuck | Auto Lubrication System | DRO |

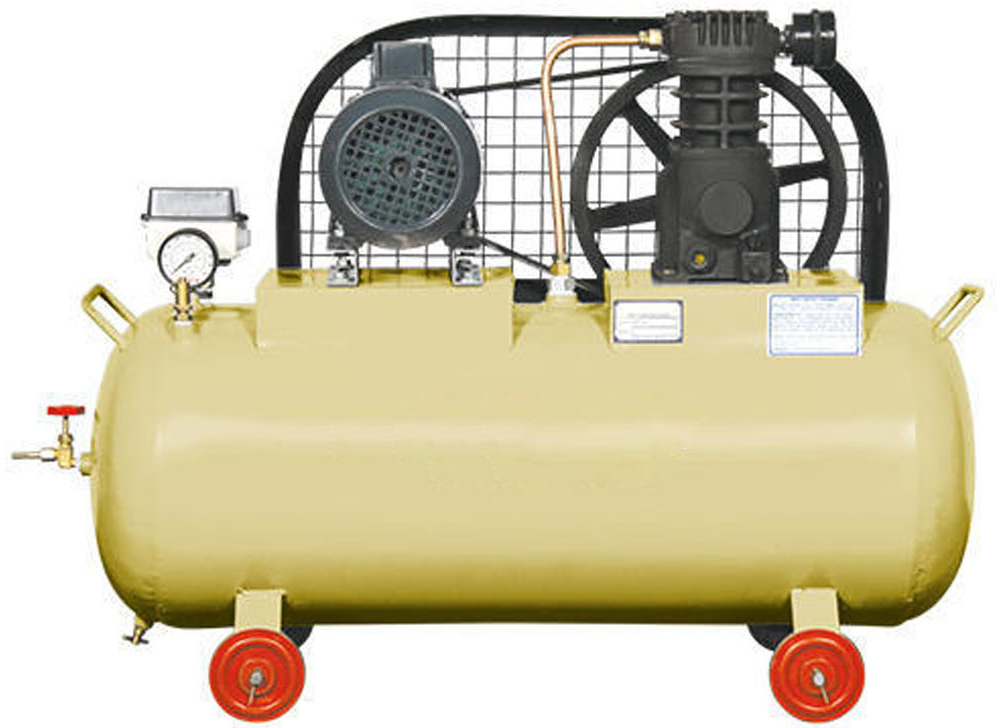

| Single Stage | |||||||
|---|---|---|---|---|---|---|---|
| Model | Air Displacement | Max Pressure | Motor | No. of | Air Recever Tank (Ltr) | ||
| CFM | M3/Hr | Kg/Cm2G | PSI | HP | Cylinders | ||
| CS - 5 | 2.98 | 5.05 | 7 | 100 | 0.5 | 1 | 45 |
| CS - 10/1 | 3.73 | 6.32 | 7 | 100 | 1 | 1 | 70 |
| CS - 15/1 | 6.78 | 11.49 | 8.78 | 125 | 2 | s | 92 |
| CS - 15/2 | 8.25 | 13.98 | 8.78 | 125 | 2 | 2 | 92 |
| CS - 30 | 14.85 | 25.16 | 5.62 | 80 | 3 | 2 | 150 |
| CS - 50 | 23.9 | 40.5 | 5.62 | 80 | 5 | 2 | 225 |
| CS - 75 | 34.6 | 58.6 | 5.62 | 80 | 7.5 | 2 | 225 |
| CS - 100 | 52.8 | 89.5 | 5.62 | 80 | 10 | 2 | 225 |
| CS - 125 | 88 | 149.1 | 2.81 | 40 | 12.5 | 2 | 300 |
| CS - 200 | 148.5 | 251.7 | 2.81 | 40 | 20 | 3 | 300 |
| Two Stage | |||||||
|---|---|---|---|---|---|---|---|
| Model | Air Displacement | Max Pressure | Motor | No. of | Air Recever Tank (Ltr) | ||
| CFM | M3/Hr | Kg/Cm2G | PSI | HP | Cylinders | ||
| CS - 30 | 7.46 | 12.64 | 10.5 | 150 | 2 | 2 | 92/150 |
| CS - 30 T | 9.78 | 16.59 | 12.3 | 175 | 3 | 2 | 150 |
| CS - 50 | 17.32 | 29.35 | 12.3 | 175 | 5 | 2 | 200 |
| CS - 75 | 26.4 | 44.74 | 12.3 | 175 | 7.5 | 2 | 225 |
| CS - 100 | 35 | 59.32 | 12.3 | 175 | 10 | 2 | 300 |
| CS - 150 | 44 | 74.59 | 10.5 | 150 | 10 | 2 | 300 |
| CS - 150 T | 49.5 | 83.9 | 12.3 | 175 | 12.5 | 2 | 300 |
| CS - 150 T | 55 | 93.2 | 12.3 | 175 | 15 | 2 | 300 |
| CS - 200 | 68.16 | 115.53 | 12.3 | 175 | 15 | 3 | 300/500 |
| CS - 200 T | 81.8 | 138.63 | 12.3 | 175 | 20 | 3 | 500 |
| CS - 300 | 87.28 | 147.93 | 12.3 | 175 | 20 | 3 | 500 |
| CS - 300 T | 98.19 | 166.42 | 12.3 | 175 | 20 | 3 | 500 |

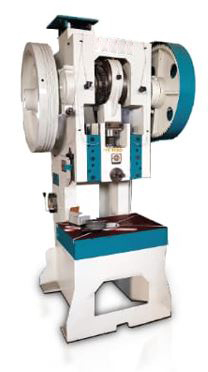

C-Type-Power-Press
Compressor
Cut-Off-Machine

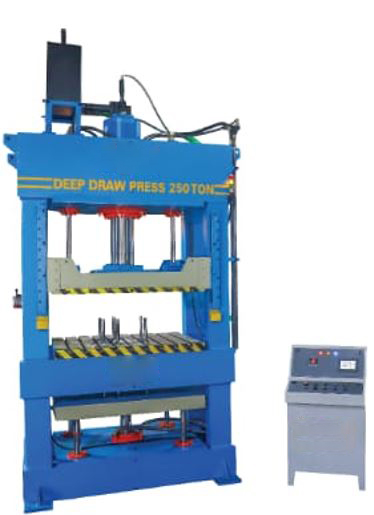

Deep Draw Press

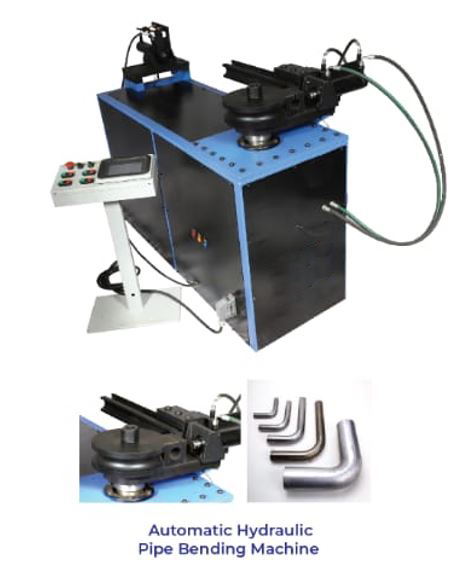

Degree Pipe Bending

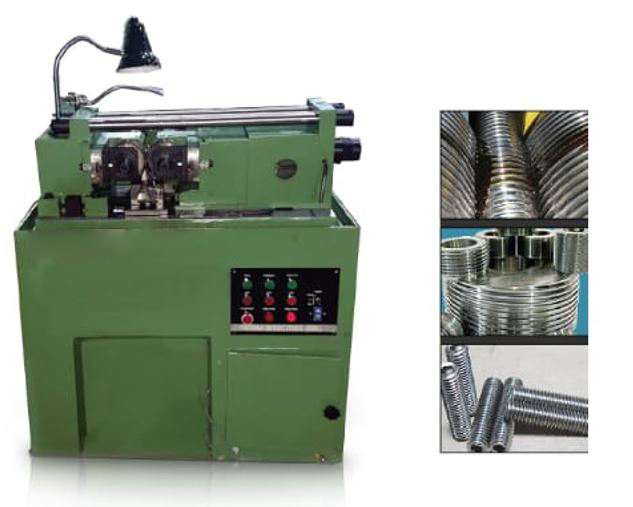

Die Roll Therading

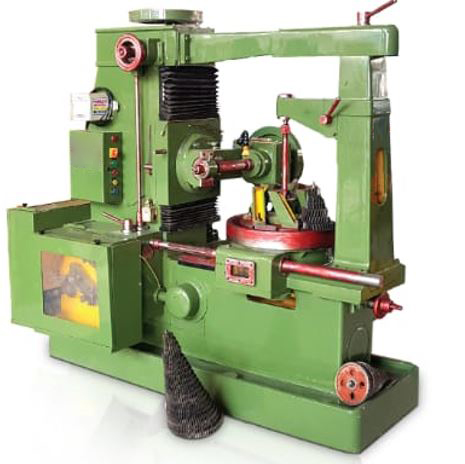

Gear Hobbing

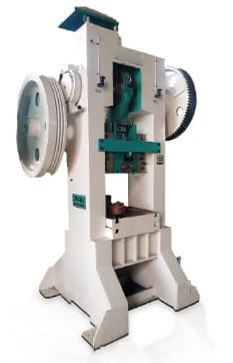

H Type Press

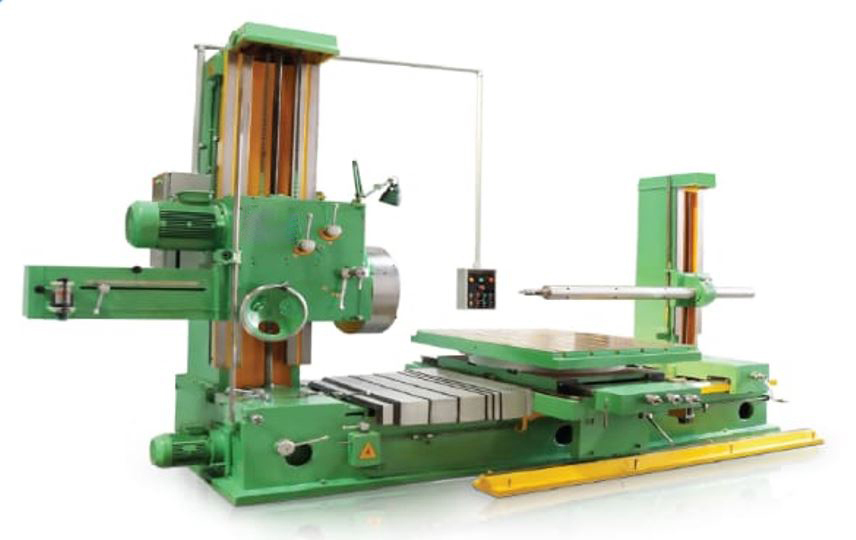

Horizontal-Borer
.jpg)

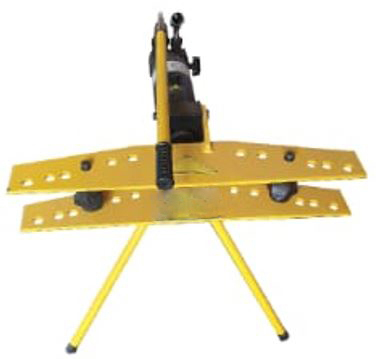

Hydraulic-Pipe-Bending-(RIght-Side)
Hydraulic-Press

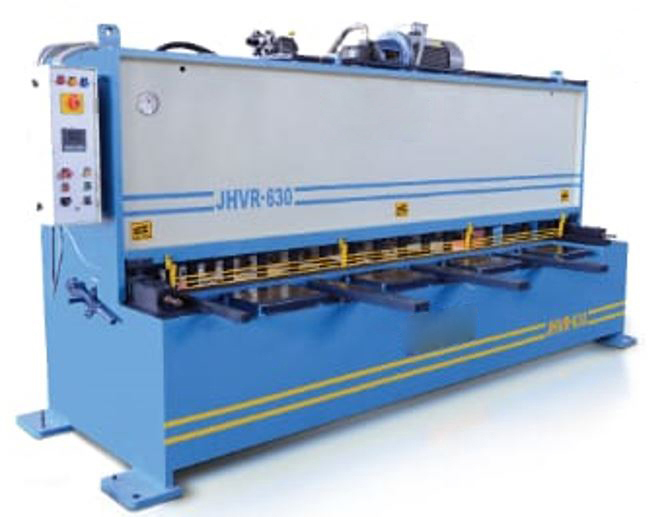

Hydraulic-Shearing

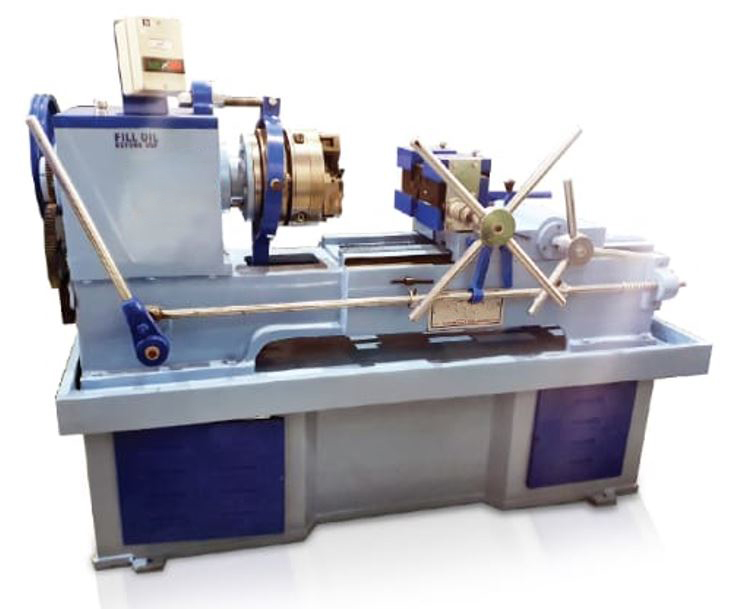

Lanco Landice Die Threading

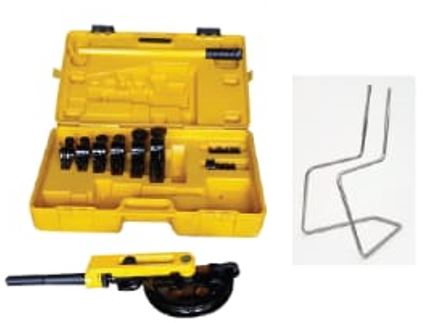

Manual Pipe Bender

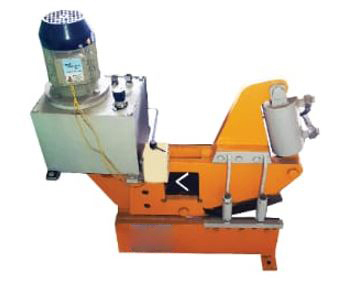

Mini-Cutter

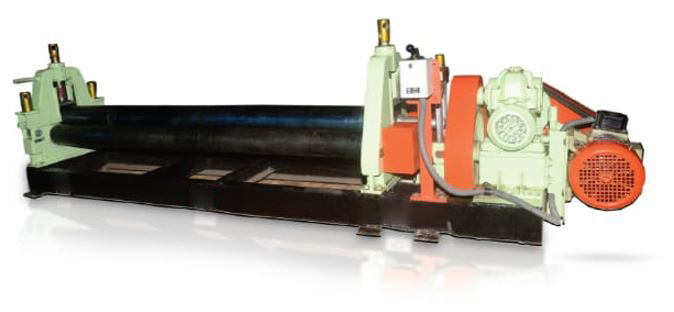

Pipe Bending Rolling

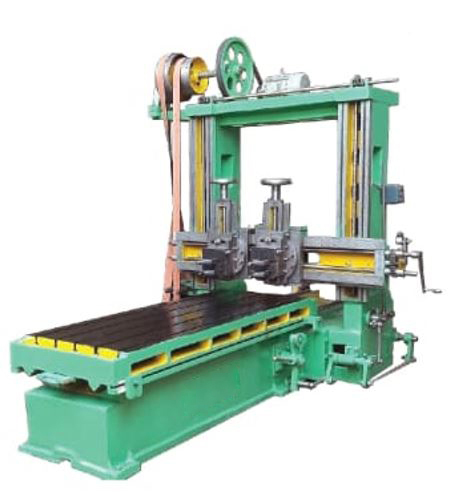

Planner

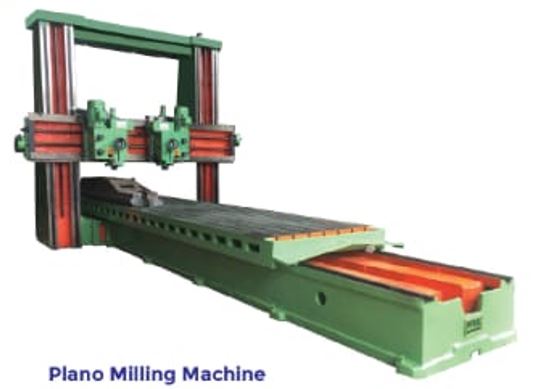

Plano Milling

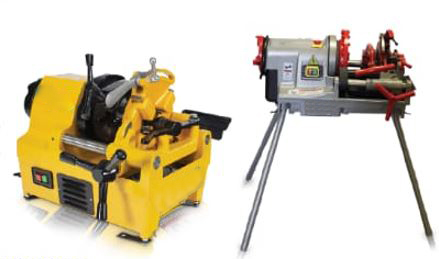

Portable Pipe Threading

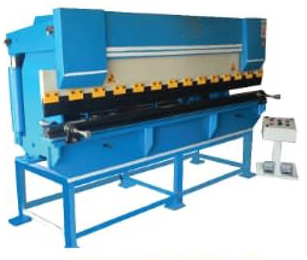

Press-Brake

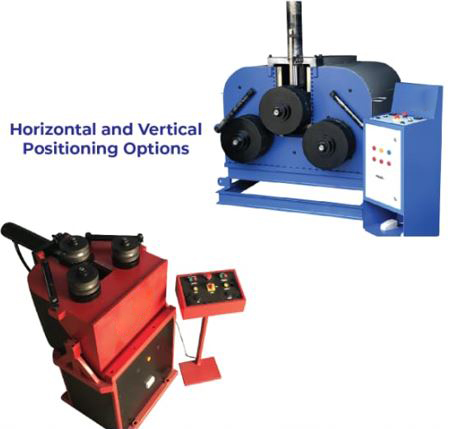

Section Pipe Bending

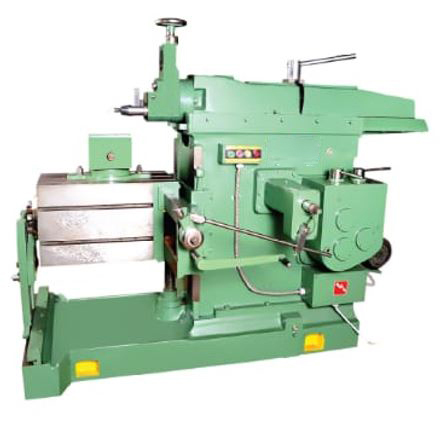

Shapping

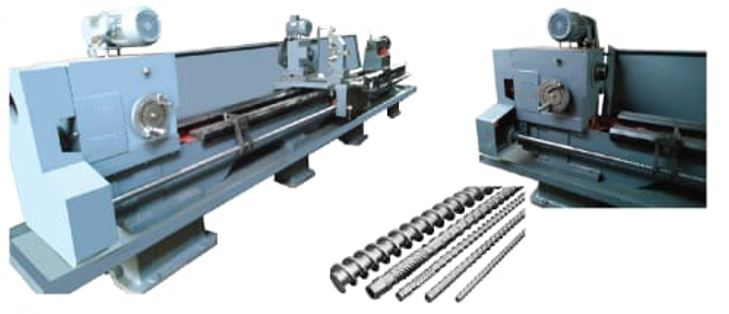

Threading Milling
.jpg)

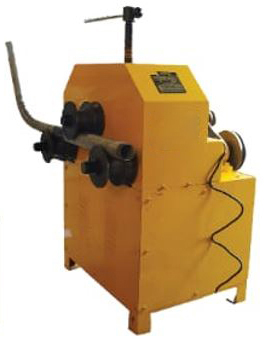

Three-Roll-Pipe-Bending-(Right-Side)
