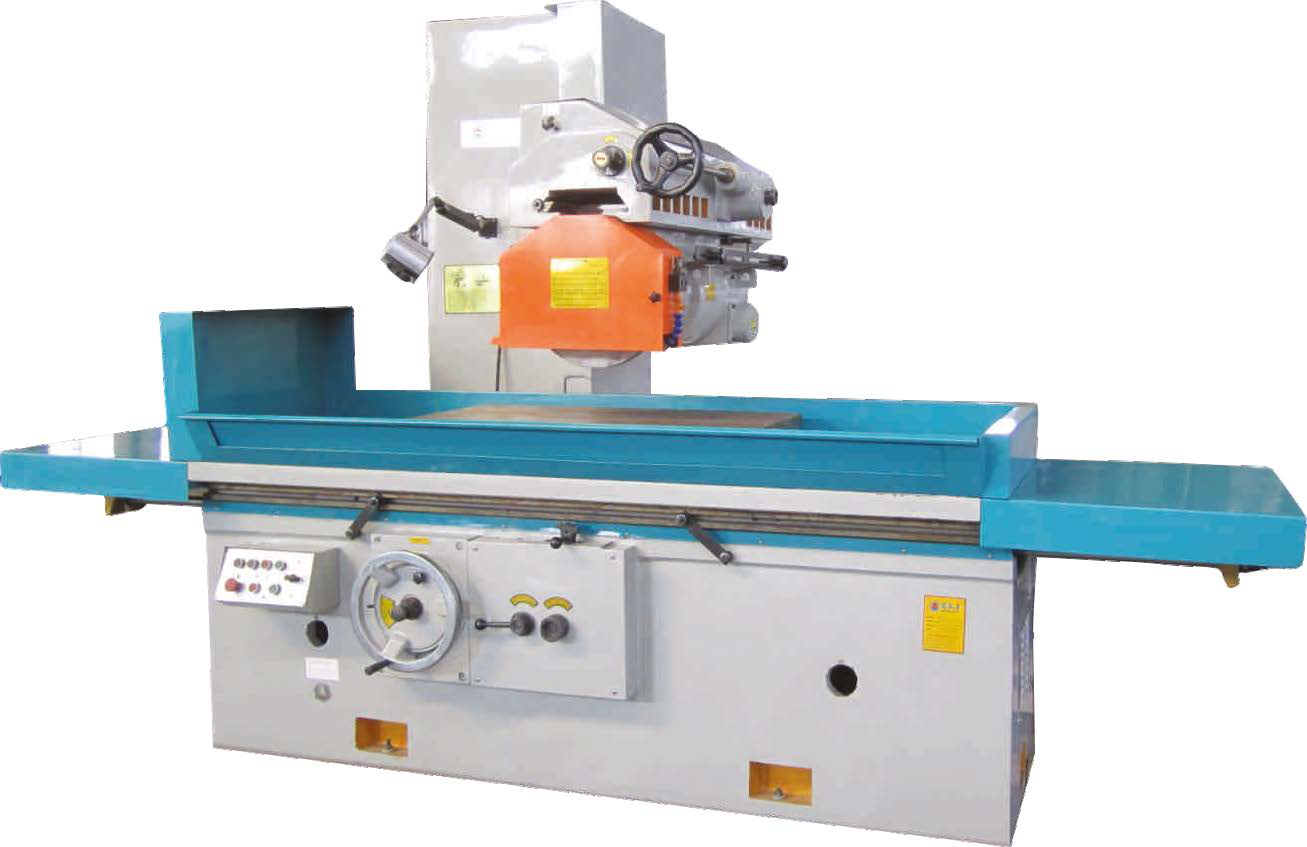

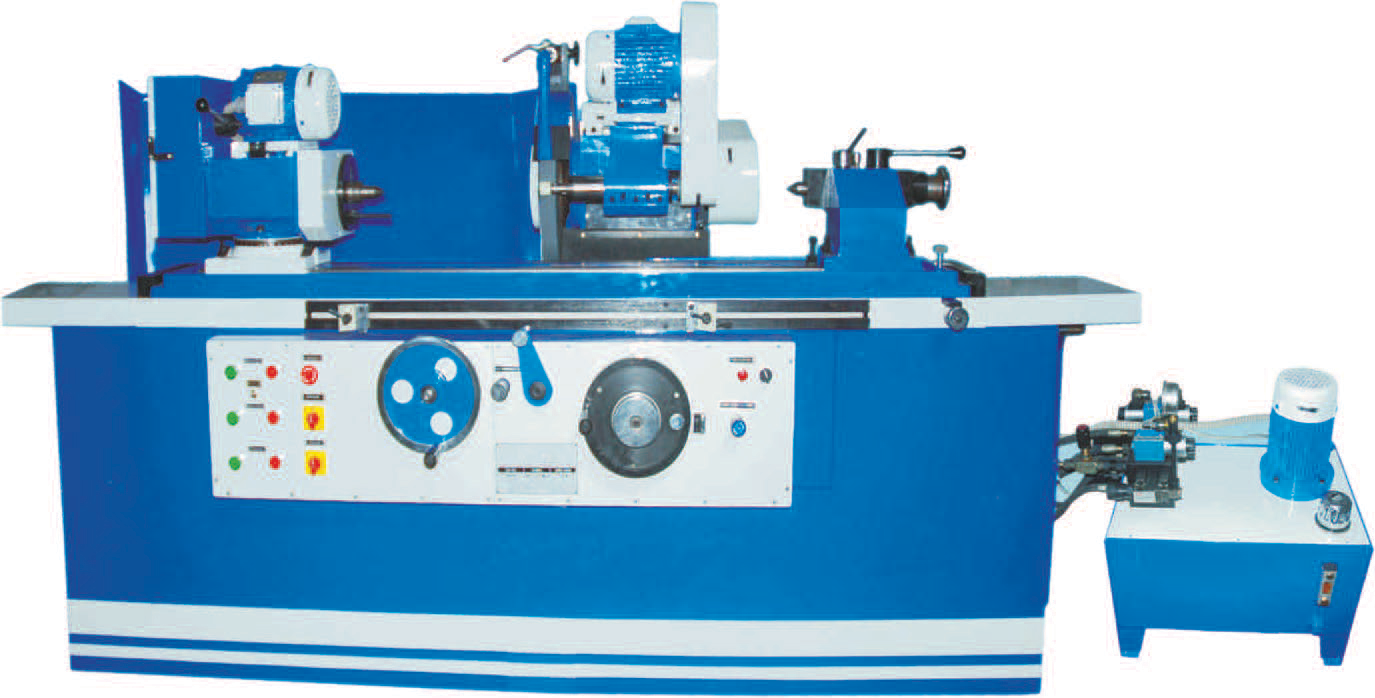

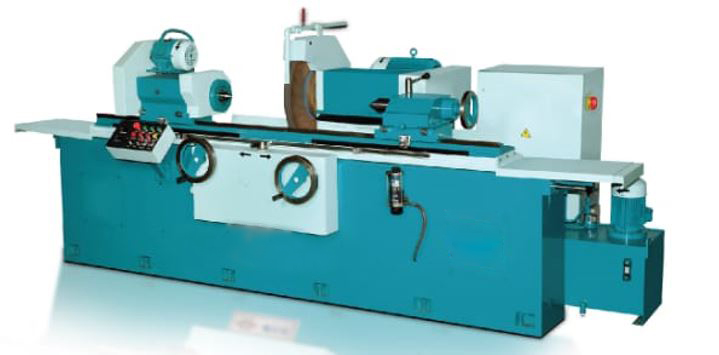

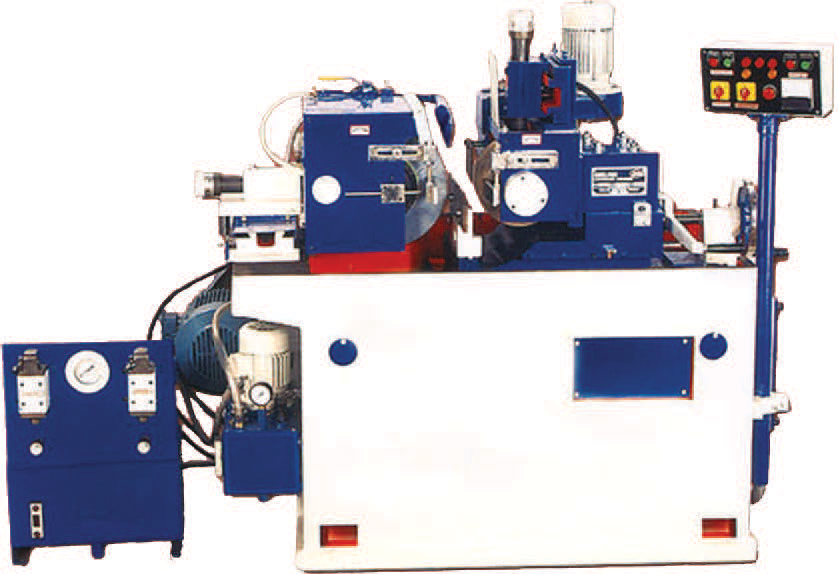

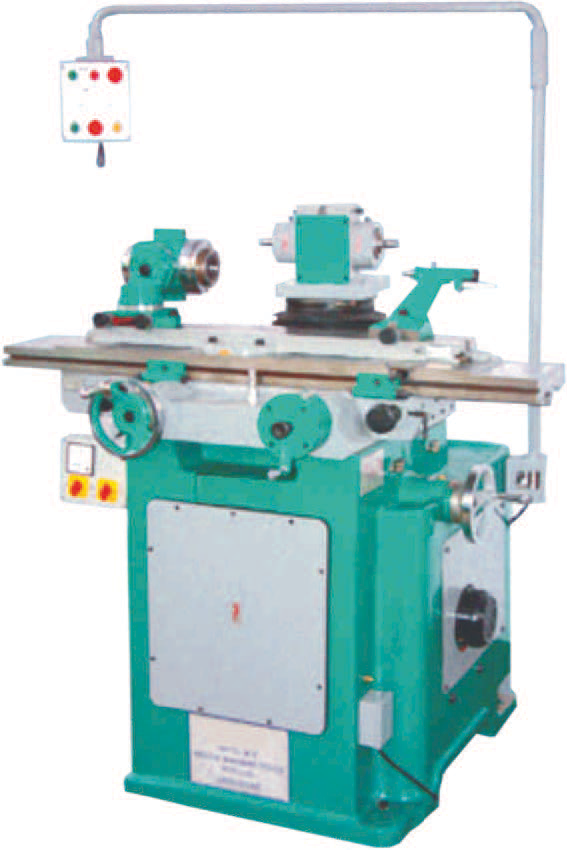

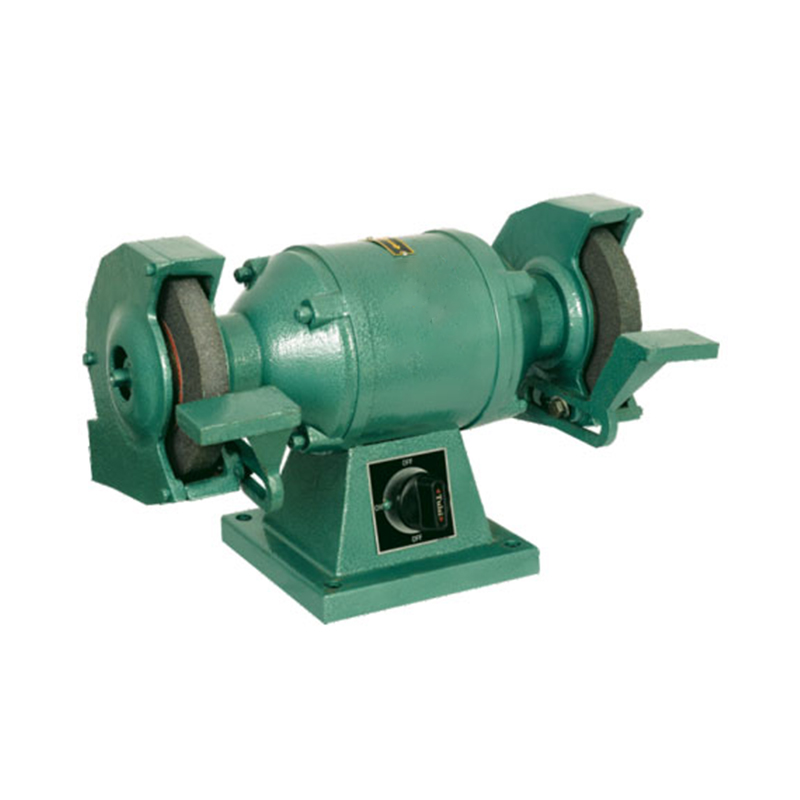

| Specifications | SG-450 | SG-500 | SG-600 | SG-600 A |
|---|---|---|---|---|
| Table Size (mm) | 150 x 450 | 200 x 500 | 250 x 600 | 300 x 600 |
| Max Length (mm) | 475 | 525 | 625 | 625 |
| Max Width (mm) | 160 | 210 | 260 | 310 |
| Distance Table Surface to Spindle Centerline (mm) | 250 | 400 | 400 | 450 |
| Magnetic Chuck Size mm) | 160 x 350 | 200 x 450 | 250 x 500 | 300 x 600 |
| Max Length handwheel one rotation (mm) | 100 | 100 | 100 | 100 |
| Max Width handwheel one rotation (mm) | 5 | 5 | 5 | 5 |
| Max Height handwheel one rotation (mm) | 1 | 1 | 1 | 1 |
| Spindle Power | 1 HP | 1 HP | 1 HP | 2 HP |
| Spindle (RPM) | 2850-3450 | 2850-3450 | 2850-3450 | 2850-3450 |
| Standard Griniding Wheel Dia (mm) | 178 x 12 x 31.78 | 203 x 12 x 31.78 | 203 x 12 x 31.78 | 203 x 19 x 31.78 |
| Hydraulic Motor Power | 1 HP | 1 HP | 1 HP | 2 HP |
| Feed Motor Power | 1 HP | 1 HP | 1 HP | 2 HP |
| Floor Space (mm) | 1370 x 1020 x 1845 | 2030 x 1370 x 1630 | 2450 x 1500 x 1630 | 2500 x 1680 x 2500 |
| Optional Accessories | Magnetic Chuck | Precision Vise | Electromagnetic Vise | DRO |
|---|
| Specifications | CG-300 | CG-500 | CG-800 | CG-1000 | CG-1250 | CG-1500 | CG-1700 |
|---|---|---|---|---|---|---|---|
| Swing over table (mm) | 300 / 400 | 300 / 400 | 300 / 400 | 400 / 500 | 400 / 500 | 400 / 500 | 400 / 500 |
| Max. Grinding length (mm) | 300 | 500 | 800 | 1000 | 1250 | 1500 | 1700 |
| Max. swivel of table (deg) | +/-8 | +/-8 | +/-8 | +/-7 | +/-6 | +/-5 | +/-5 |
| Table speed ‐ stepless (m x min) | 0.1-4 | 0.1-4 | 0.1-4 | 0.1-4 | 0.1-4 | 0.1-4 | 0.1-4 |
| Dwell at reversals (sec) | 0-60 | 0-60 | 0-60 | 0-60 | 0-60 | 0-60 | 0-60 |
| Grinding wheel diameter (mm) | 350 / 400 | 350 / 400 | 350 / 400 | 400 / 500 | 400 / 500 | 400 / 500 | 400 / 500 |
| Grinding wheel width (mm) | 40 / 50 | 40 / 50 | 40 / 50 | 40 / 50 / 80 | 40 / 50 / 80 | 40 / 50 / 80 | 40 / 50 / 80 |
| Wheel head rapid approach (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Wheel head swivel (deg) | +/-60 | +/-60 | +/-60 | +/-60 | +/-60 | +/-60 | +/-60 |
| No. of work head speeds (mm) | 4 / 8 | 4 / 8 | 4 / 8 | 8 | 8 | 8 | 8 |
| Work head swivel (deg) | 0-90 | 0-90 | 0-90 | 0-90 | 0-90 | 0-90 | 0-90 |
| Work head centre (MT) | 4 / 5 | 4 / 5 | 4 / 5 | 4 / 5 | 4 / 5 | 4 / 5 | 4 / 5 |
| Tailstock centre (MT) | 3 / 4 | 3 / 4 | 3 / 4 | 4 / 5 | 4 / 5 | 4 / 5 | 4 / 5 |
| Internal grinding spindle (Opt). (mm) | Dia 60 x 250 | Dia 60 x 250 | Dia 60 x 250 | Dia 80 x 250 | Dia 80 x 250 | Dia 80 x 250 | Dia 80 x 250 |
| Specifications | CG-75 | CG-100 | CG-150 |
|---|---|---|---|
| Grinding Dia Range (mm) | 2-75 | 2-100 | 5-150 |
| Max length infeed grinding (mm) | 100 | 150 | 200 |
| Max length through feed grinding (mm) | OD 75 x L 300 | OD 100 x L 250 | OD 150 x L 200 |
| Grinding wheel size (mm) | 350 x 100 x 127 | 350 x 150 x 127 | 500 x 200 x 305 |
| Regulating wheel size (mm) | 225 x 100 x 76 | 225 x 150 x 76 | 300 x 200 x 127 |
| Grinding wheel speed (RPM) | 1800 | 1800 | 1200 |
| Regulating wheel speed (RPM) | 20-40-60 | 20-40-60 | Variable VFD |
| Grinding wheel motor | 5 HP | 7.5 HP | 20 HP |
| Regulating wheel motor | 1 HP | 1 HP | 3 HP |
| Coolant pump motor | 0.15 HP | 0.15 HP | 0.50 HP |
| Hydraulic power pack | 0.5 HP | 0.5 HP | 0.5 HP |
| Regulating wheel angle tilting (Deg) | 5 | 5 | 5 |
| Upper slide swiveling (Deg) | 3 | 3 | 3 |
| Machine Size (mm) | 1850 x 1100 x 1600 | 1850 x 1100 x 1600 | 2500 x 1700 x 1650 |
| Weight | 1800 Kgs | 2000 Kgs | 4500 Kgs |
| Specification | Size | Specification | Size |
|---|---|---|---|
| Max Dia of cutter to grind | 250 mm | Max Distance bewtween cutters | 300 m |
| Max length of cutting edge grind | 260 mm | Grinding spindle speed | 4600 RPM |
| Motor Power | 0.5 HP (2800 RPM) | Swing diameter on workhead | 275 mm |
| Working Surface of Table | 450 x 125 mm | Longitudinal Traverse | 200 mm |
| Cross Traverse | 150 mm | Machine Base | 600 x 450 mm |
| Floor Space | 765 x 1145 mm | Height of machine | 1375 mm |
| Weight of machine | 325 Kgs |
| Model No. | Wheel Size | Motor Power | Motor RPM |
|---|---|---|---|
| PBG-1 | 6" x 1/2 " x 1/2" | 0.5 HP | 2880 |
| PBG-2 | 6" x 1 " x 1/2" | 0.5 HP | 2880 |
| PBG-6 | 8" x 1" x 5/8" | 1 HP | 2880 |
| PBG-7 | 10' x 1" x 1" | 1 HP | 1500 |
| PBG-7A | 10' x 1" x 1" | 1.5 HP | 3000 |
| PBG-8 | 10' x 1" x 1" | 1.5 HP | 1500 |
| PBG-9 | 12" x 1.1/2" x 1" | 2 HP | 1500 |
| PBG-9A | 12" x 2" x 1" | 2 HP | 1500 |
| PBG-10 | 14" x 1.1/2" x 1.1/2" | 2.5 HP | 1500 |
| PBG-10A | 14" x 2" x 2" | 3 HP | 1500 |
| PBG-11 | 16" x 1.1/2" x 1.1/2" | 3 HP | 1500 |
| PBG-12 | 16" x 2" x 2" | 3 HP | 1500 |
| KA-50 | 18" x 2" x 2" | s | 1500 |
| KA-75 | 18" x 3" x 2" | 7.5 HP | 1500 |
| KA-75A | 18" x 3" x 2" | 7.5 HP | 1500 |

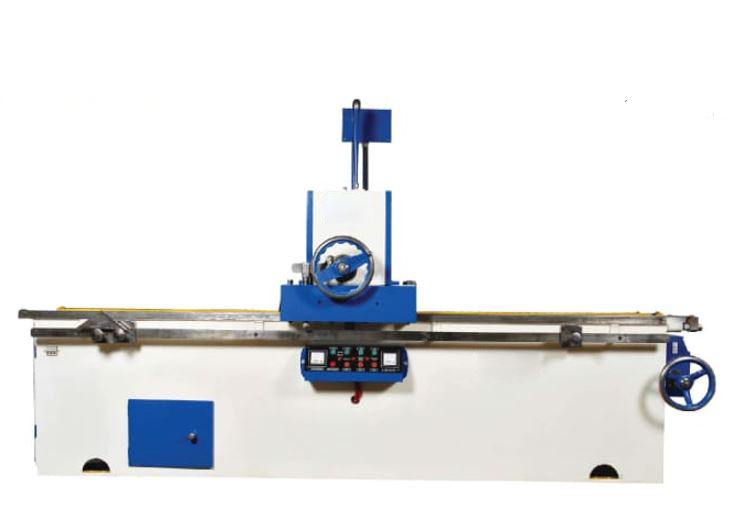

Knife Grinding

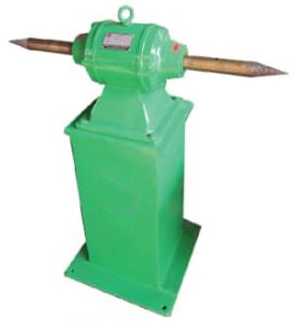

Polisher
